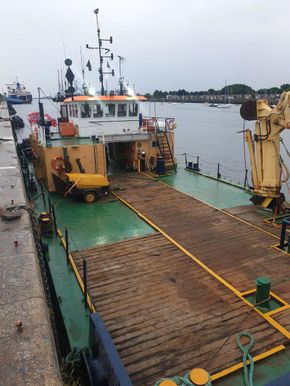

DO0121 WORK BOAT Multicat For Charter
FROM DIRECT OWNERS

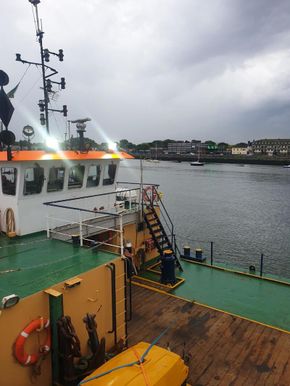

Is a large versatile Multicat which is suited to a wide variety of roles
such as construction assistance, dredge helping and towage. Can
carry up to 216 m3 of fuel in addition to a full deck cargo and is
ideally suited for offshore refuelling. Also an integrated 4 point
mooring separate from her main winches & capstans.
Type of Vessel: Delta MP 2650 Multicat
Passenger License: 12 Passengers (UK & IRL)
Bollard Pull: 15 Tons (Ahead) / 8 Tons (Astern)
TOWING EQUIPMENT AND WINCHES

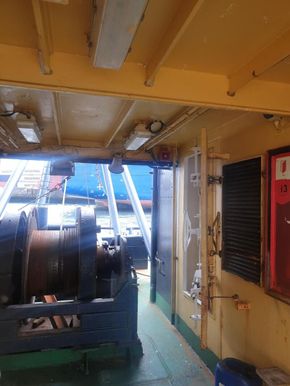

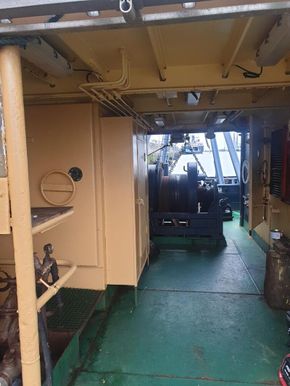

Anchor Handling / Towing Winch: Heerenveen 40 Ton (SWL)
Mooring Winches: 4 x Eagle 3 Ton (SWL)
Capstan: Hydrant Capstan 4 Ton
Large Removable “A” Frame.

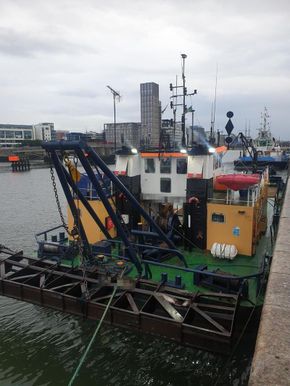

Various 10m Wide Dredging and Levelling Ploughs.

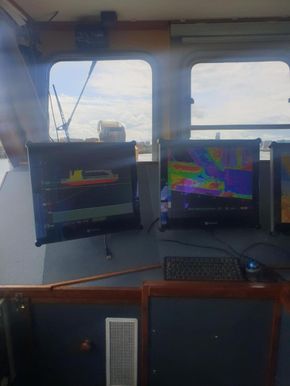

Dredgemaster Plough and Survey Software.
Trimble RTK GPS Positioning (incl Base Station)
ADDITIONAL DECK EQUIPMENT

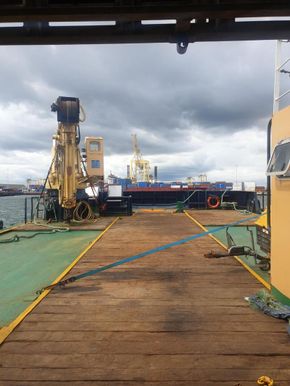

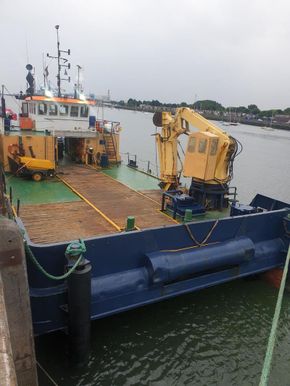

Deck Crane: Effer 110Txm/3S with winch
Capacity 31.5t @ 3.5m / 9.0t @ 12m
Bow Roller: 3.0m Heavy Duty Roller
Docking Fender: Proven Wind turbine Docking fender to allow access
for crew transfer or during refuelling / lifting operations.
Fuel Transfer: High & Low Pressure Fuel transfer system
Power Washing: Integrated High Pressure Sea and Fresh Water Jetting
System suitable for cleaning offshore turbines, Moorings and Buoys
|Vessel type:||1989 WORK BOAT Multicat 27.05 m Only For Charter|
|Class Notation:||Loadline (UK & IRL)|
|No. of engines:||1|
|Engine model:||Caterpillar 3408B DITA|
|Maximum Speed:||10 Knots|
|Length over all:||27.5m|
|Fuel capacity:||216 Cubic Metres|
|Water capacity:||28 Cubic Metres|
Built (year and place) 1989, NETHERLANDS
Hull material Steel
Length Overall (m) 27.05 m
Breadth (m) 10.80 m
Draft (m) 1.95 m
NT (tons) 67 tons
GT (tons) 225 tons
Total power output (BHP) 442 bhp
Main Engine(s) (make,type) 1 x Caterpillar 3408B DITA
Main Propulsion System Single screw
Speed maximum 10 knots
Gearboxes: Reintjes WAF 260
Power Output: 300kw (Continuous per engine)
Propulsion: FPP (Dia 1200mm) in Kort Nozzles

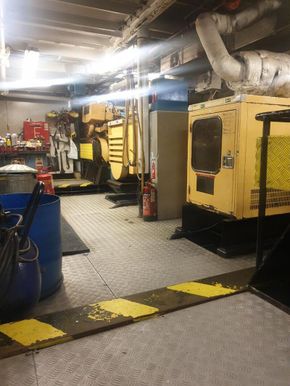

Main Aux Generator : 1 x Caterpillar 3304 / 98Kva 440V 3 Phase 50 Hz
Harbour Aux Generator: 22 KVA Perkins 3152 (Silenced)
Flag UNITED KINGDOM
Class Society and Notation International Loadline (UK & IRL)
|Charter Information:||Only For Charter|
